Evaporex 96
Evaporex

Accelerate the discovery process with optimized microplate sample preparation

EVX evaporators minimize low-volume sample drying time by evenly directing heated gas to microplates using dual upper and lower stainless steel needle assemblies. With full control over the temperature and flow rate, you can ensure optimum evaporation rate for your experiments for increased research productivity.

Ensure sample integrity
Ensure sample integrity

A sealed gas pathway and non-touching heating elements prevent contamination.

Flexible setup
Flexible setup

The fully adjustable elevator accommodates most plate depths and solvent volumes.

Conserve bench space
Conserve bench space

The compact design fits easily into common hood or micro ventilation setups.

Easy maintenance
Easy maintenance

Removable upper and lower assemblies enable quick and easy cleaning.

Choose the model to suit you
Choose the model to suit you

Dedicated models have been designed for specific workflows.

User friendly
User friendly

Instruments are operated by simple and intuitive controls.

EVX models

Each EVX model is available in single- (EVX-96) or dual-plate (EVX-192) configurations.

  • EVX-96 / EVX-192: For aqueous or non-corrosive liquids from shallow or deep well microplates.
  • EVX-96T1 / EVX-192T1: For strong acids or halide-containing organic solvents with PTFE coated head on top.
  • EVX-96T2 / EVX-192T2: For SPE or filtration plates with PTFE coated head on top and bottom.
  • EVX-96-384 / EVX-192-384: For 384-well plates.

Technical Specification

Scroll to view more information

Dimensions
(W x D x H)
EVX-96: 242mm x 306mm x 400mm (9.52in x 12.05in x 15.72in)
EVX-192: 254mm x 381mm x 394mm (10in x 15in x 15.5in)
Weight EVX-96: 25lbs (11kg)
EVX-192: 31lbs (14kg)
Power 100-240 VAC 50/60Hz Inlet Gas Connection 1/4”
Supply Pressure 15-50 PSI Operating Flow Rate 25-60 LPM
Operating Temp Max. 60°C (upper), 80°C (lower)
Max. 140°F (upper), 176°F (lower)

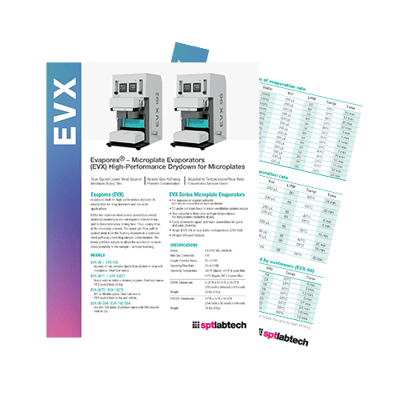

Product brochure

This product brochure provides a complete overview of the EVX series in one easy-to-read document.

It includes technical specifications, key features and performance information across the series.

Click the button below to download the brochure.

Download the product brochure
