BML Scan with NEW Flag
BML-Scan-001

Compact all-in-one barcode reader for high-speed decoding

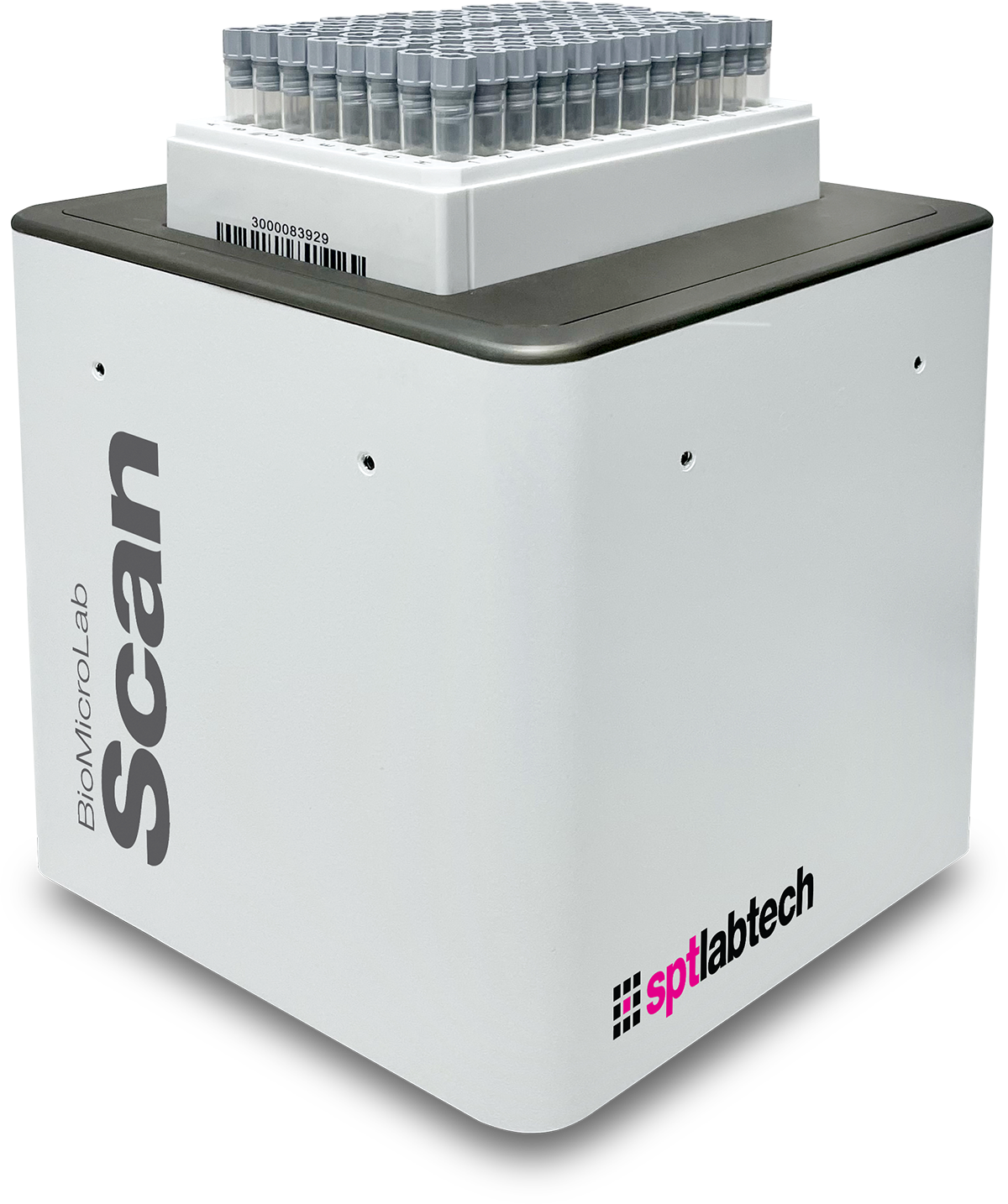

The BioMicroLab Scan combines the latest camera and software technology with a modern, compact design. Designed for high-speed barcode reading for both SBS and standard cyrobox format 2D barcoded tubes, this powerful new reader decodes most rack types in under 1 second!

High-speed camera-based decoding
High-speed camera-based decoding

Latest camera-based technology provides a higher resolution image with automatic focus and crisp contrast for high speed decoding of user barcodes. The BioMicroLab Scan captures and decodes SBS format racks in under 1 second and 81/100/196 cyrobox formats in under 2 seconds.

Redesigned software
Redesigned software

BioMicroLab Scan’s software brings the same reliable functionality and power with a redesigned, modern user experience. Optimized for the latest camera technology and compatible with the widest range of labware, our software captures the 2D barcode image, decodes the barcode, and outputs the data in a user configurable .csv (excel-like) file format for easy integration with your sample database system.

Compatible with a wide variety of labware
Compatible with a wide variety of labware

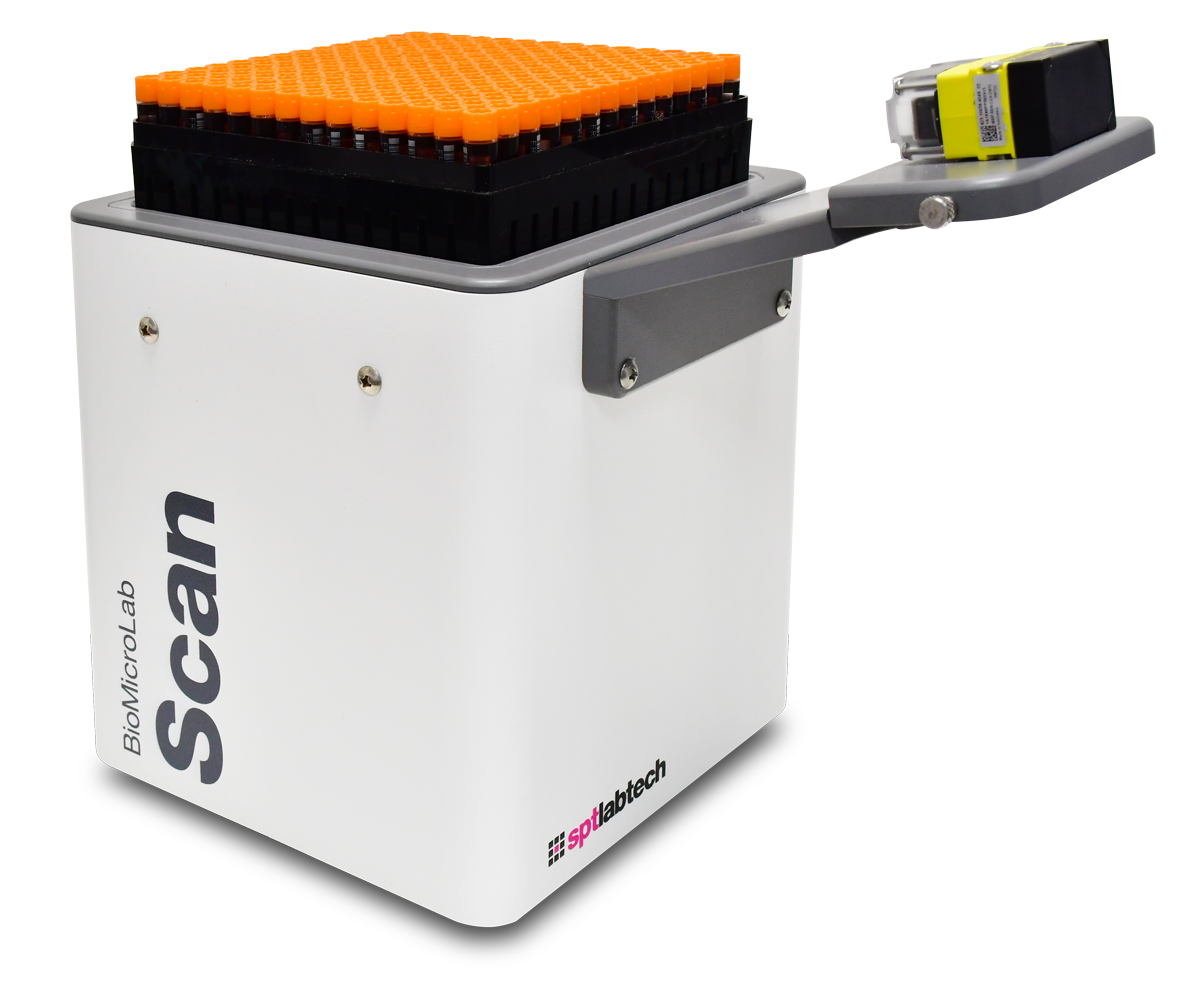

Capable of scanning and decoding the widest range of labware on the market, the BioMicroLab Scan decodes 2D barcodes on the base of cryotubes, cryo vials, glass vials, and others in a wide range of 81/100/196 format cryoboxes and ANSI/SLAS standard labware.

Compatible with cold environments
Compatible with cold environments

Consistent with the BioMicroLab brand, the Scan is capable for use in cold environments and its unique to the market, windowless design eliminates fogging when scanning frozen racks!

Technical Specification

Scroll to view more information

Dimensions Scan: 6.5″ D x 6.5″ W x 7.4″ H (17 x 17 x 19 cm) Dimensions (with 1D auto) Scan with 1D Auto: 10.9″ D x 6.5″ W x 9.6″ H (27.7 x 17 x 24.4 cm)
Weight Scan: 7.75 lbs (3.52 kg) Weight (with 1D auto) Scan with 1D Auto: 8.5 lbs (3.86 kg)
System Requirements Operating System: Windows 10, 11 and .NET 6
Ports: (1) USB 3.0 port or faster
Electrical 100-240VAC ~ 50/60Hz, 1.25A; Universal power supply (or supplies) with US, UK, Euro or user specified.
Operating Environment 32° – 131° F (0° – 55° C)
