Lab2lab overview - 2.0

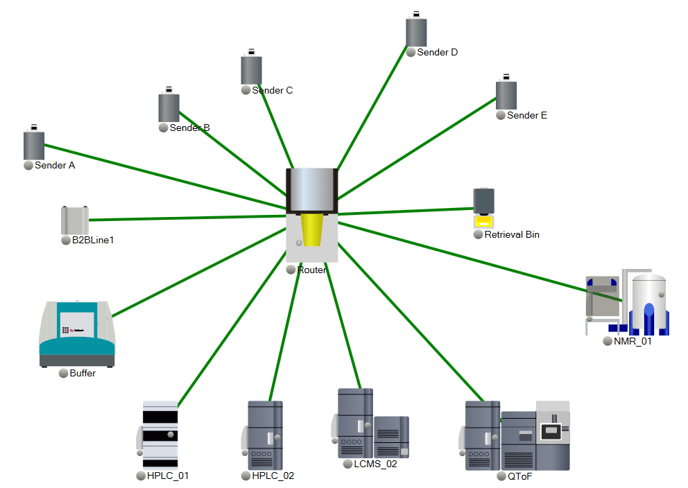

lab2lab is a system which manages all aspects of access to analytical instruments. It uses a pneumatic transport system to move sample vials to instruments, via a central Router.

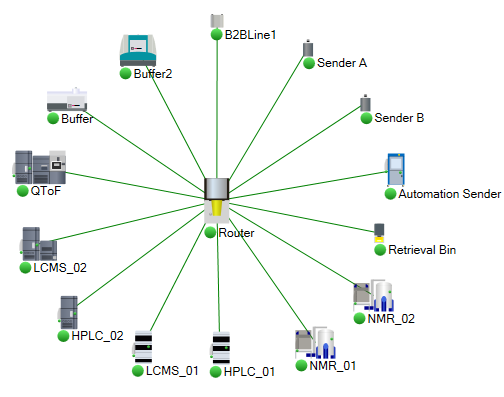

As the system is highly customizable, each lab2lab system will have differing numbers of Senders, different analytical instruments and physical layout throughout a building or site. Each system also includes a Collection Point for samples and at least one Buffer which provides temporary storage of vials during processing.

Illustrations in this manual are generic and do not correspond to particular installations.
