Each lab2lab device requires a mains outlet within 1m of its location.

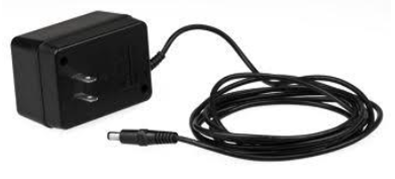

The lab2lab Sender, Receiver (Waters/Agilent/NMR), bin / Collection Station, building2building Transceiver and Alarm unit use a 100-220VAC 50/60Hz wall wart style AC/DC power supply. This generates 24V DC @ 1A and is used to power the devices.
The PSU will be supplied with the appropriate mains adapter for the country of use.
The Router uses a laptop style external PSU as its power source. This requires 100-220V 50/60Hz source and will be supplied with the appropriate mains adapter for the country of use.
The Buffer is directly powered from an AC mains supply and will work from 100-220VAC 50/60Hz.
The PC is directly powered from an AC mains supply and will work from 100-220VAC 50/60Hz.
The PC Monitor is directly powered from an AC mains supply and will work from 100-220VAC 50/60Hz.
