Installing devices - 4.8 Buffer

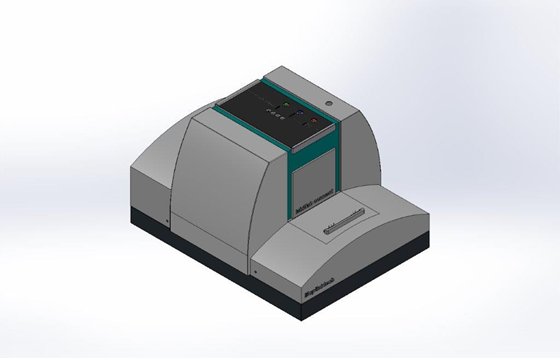

The Buffer requires an area of 600mm (w) x 575mm (d). Services are connected to the rear of the Buffer. Access to the internal rack is at the front via a slide out drawer.

A hole must be drilled in the ceiling (tile) above the Buffer for the acrylic pipe to pass through.
Once the necessary connections are made in the ceiling the rigid transport pipe is connected to the Buffer via the coupling in the top of the device.

You must ensure the PTFE pipe is able to drop vertically to the correct mounting position of the Buffer and inform SPT Labtech of its precise location for the installation. The pipe will be fitted in Port 1 of the Buffer.
